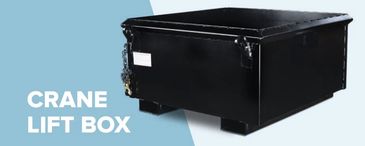

Crane Lift Boxes
.
.

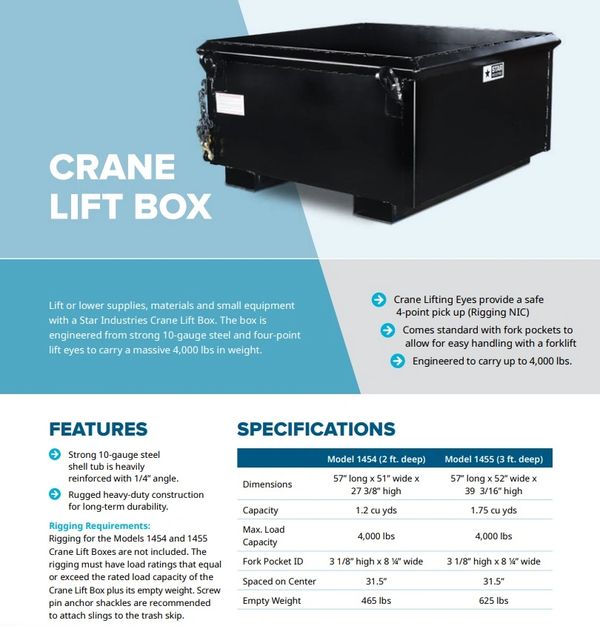

Model 1454
Model 1454
Model 1454
57” long x 51” wide x 27-3/8” high
Capacity: 1.2 cu yds
Max. Load Capacity: 4,000 lbs
Fork Pockets
Empty Weight: 465 lbs
PRICE ... $
Model 1455
Model 1454
Model 1454
57” long x 52” wide x 39-3/16” high
Capacity: 1.75 cu yds
Max. Load Capacity: 4,000 lbs
Fork Pockets
Empty Weight: 625 lbs
PRICE ... $

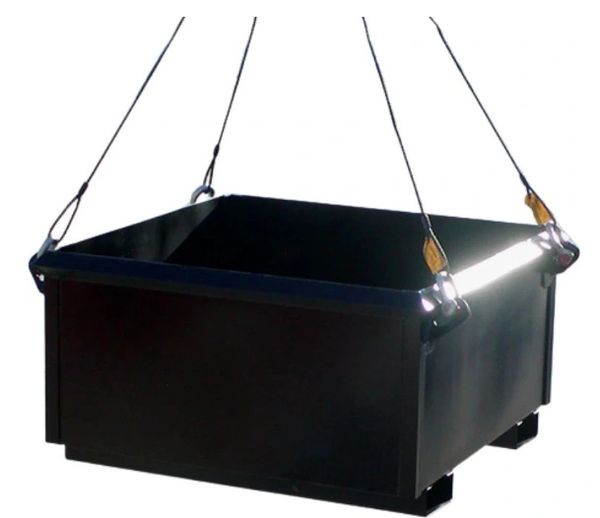

crane material basket
This crane material basket is designed for commercial construction and provides a reliable solution for transporting palletized or loose materials using mobile, tower, or overhead cranes.
features:
- Constructed from ASTM A500 Grade B structural steel tubing with full-penetration structural welds
- Heavy-duty floor available in 3/16″ steel plate or expanded metal, with steel mesh side panels for visibility & containment.
- Standard safety features include a safety chain door, spring-loaded or chain gate, welded tie-down points, and floor drain holes.
- 4-point top pick integrated lifting lugs support a balanced 4-point lift
- Integrated fork lift pockets
- Measures: 48" x 48" x 48'
- Empty Weight: 645 lbs
- Working Load Limit 4,000 lbs
- Complies with OSHA 1926 / ASME B30.20 & BTH-1 Standards
Rigging Requirements:
Designed for use with chain or wire rope slings in a 4-point top pick configuration. Recommended sling angle is 60° or greater, with evenly distributed loads
REQUEST PRICE ... $
